Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

Product Categories

Xi'an Elite Electronic Industry Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

Brand Name : ELT

Model Number : SMA-K3

Certification : CE ROHS

Place of Origin : China

MOQ : 100 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : SMA RF Conector

Plating : Gold Plated/ Passivation

Frequency : DC~18GHz

Impedance : 50Ω

Gender : Male

Durability : 500 Cycles

Model : SMA-K3

Contact Now

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Electrical Specification :

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Application:

*Network

*Radar

*Automotive

*Satcom

*Computer/LANs

*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Aerospace
*Board-to-board interconnect

Detailed Images:

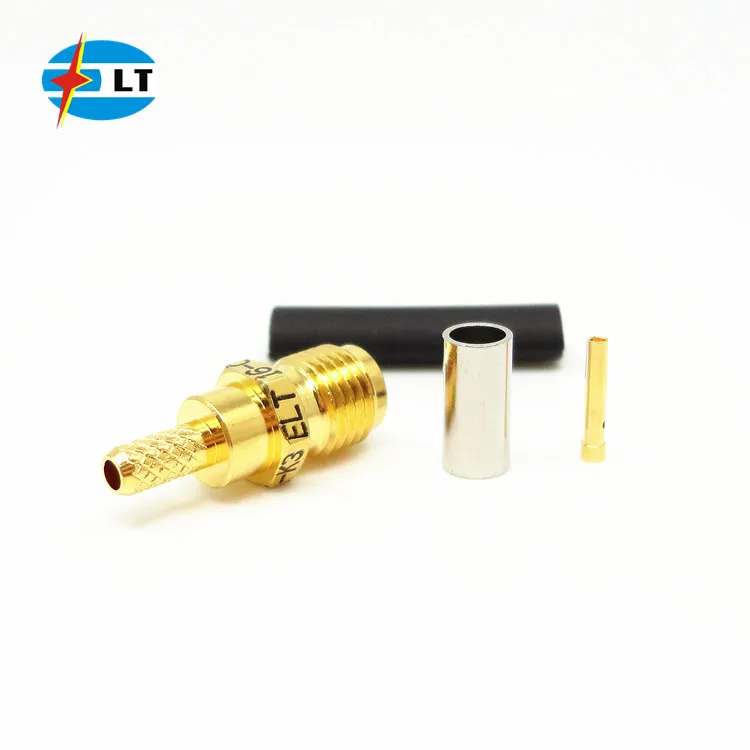

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

Model No.	Description	L(mm)	L1	L2	Cable Type
SMA-K3	SMA female connector for RG316 cable	17	5.6	8	RG316
SMA-K4	SMA female connector for SFF cable	19.9	8.5	10	SFF-50-2-2
SMA-K5G	Stainless steel female connector for SFF cable	22	10	12	SFF-50F3-1

Packaging Details:
* Standard Export Carton
* According to clients' requirements

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
